How To Create APM Wall Charts (ArduPilot Diagram)

This WallChart.pdf is a first draft of an idea to provide diagrams of the relationships between the different modules of any Arduino drone project that new users can stick on the wall.

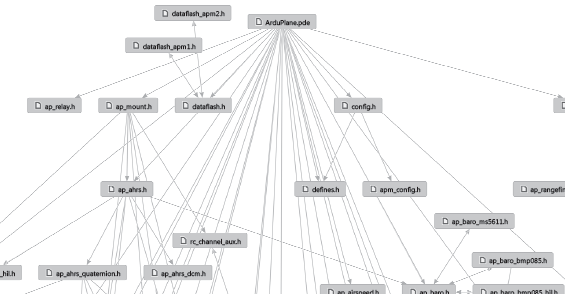

The pdf shows a map of how the various parts of the ArduPilot program interlink. You will see that currently the code diagram is very busy. How could all this information be presented in a more structured manner in a single snap-shot?

How to Create Your Own Code Diagrams - ArduPilot Example

If you have Window XP or Windows 7 then you can easily create your own code diagrams using the Arduino plugin for Microsoft Visual Studio Professional .

The plugin is free, you can read how to get a free legal copy of Visual Studio Professional from here.

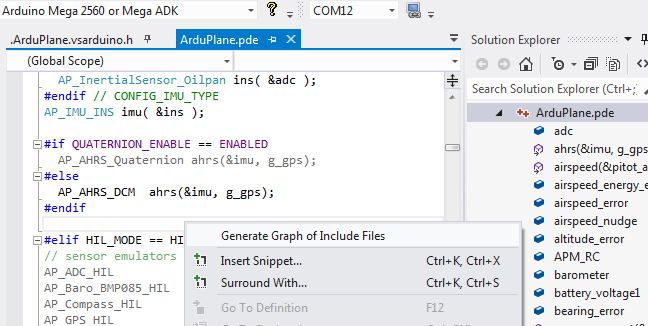

1. Open ArduPilot.pde or (.ino) in Visual Studio and right click anywhere in the code.

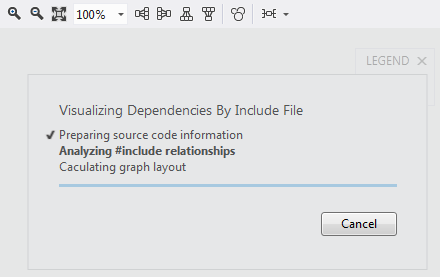

2. Visual Studio will open a new code window containing the diagram explorer tool. Progress will display while the code diagram is being automatically created.

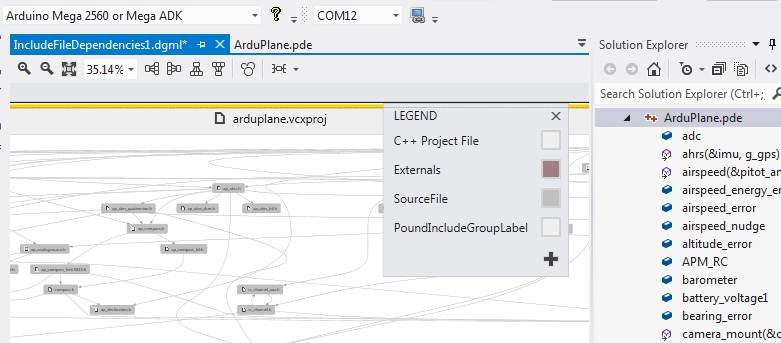

3. The code diagram will automatically appear when the visualization is complete. If required, you can edit the diagram, change the layout and remove items by using the mouse or diagram toolbar controls


About Arduino Compatibility in Visual Studio

Visual Studio is a simple installation and provides 100% Arduino compatible compile and upload combined with intellisense and code explorer tools.

If you are unsure how easy the plugin is to use then you can read what users have to say in the What do you think section of our forum. If you have been using the plugin for a while then please then please support the product by joining the forum.
